IoT Device
NonMag Sensor
An add-on sensor, powered by STMicroelectronics' advanced LoRa SoC, combines with expertise in single chip solutions with LC sensor interface and LoRa communication technology.
It's a perfect fit for Itron water and gas meters equipped with Cyble Target, powered by a long-lasting battery, with a lifespan of up to 10 years accurately calculated by our battery management system, it becomes the ideal choice for users who prioritize high-quality and long-lasting performance.
IP68 Protection
KOMINFO CERTIFIED
Benefits
Anti-tampering function triggers automatically and sends alarm to system when sensor is away from Cyble target of meter
Compatible with water meters and gas meters that is equipped with LC sensor target
Specifications
TX Current
≤127 mA @22dBm
Battery Life
5 years battery lifetime
Power Supply
3.6V (ER26500 8500mAh)
Active Current
≤5mA
Standby Current
≤70µA
Storage Temperature
-10°C ... 60°C
Working Temperature
-10°C ... 60°C
Battery Usage Monitoring
Accurate coulomb measurement
MCU Temperature Monitoring
Yes
Battery undervoltage warning
Yes
spec1
TX Current
≤127 mA @22dBm
Battery Life
5 years battery lifetime
Power Supply
3.6V (ER26500 8500mAh)
Active Current
≤5mA
Standby Current
≤70µA
Storage Temperature
-10°C ... 60°C
Working Temperature
-10°C ... 60°C
Battery Usage Monitoring
Accurate coulomb measurement
MCU Temperature Monitoring
Yes
Battery undervoltage warning
Yes
spec water
TX Current
≤127 mA @22dBm
Battery Life
5 years battery lifetime
Power Supply
3.6V (ER26500 8500mAh)
Active Current
≤5mA
Standby Current
≤70µA
Storage Temperature
-10°C ... 60°C
Working Temperature
-10°C ... 60°C
Battery Usage Monitoring
Accurate coulomb measurement
MCU Temperature Monitoring
Yes
Battery undervoltage warning
Yes

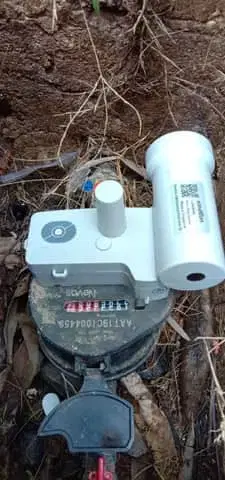

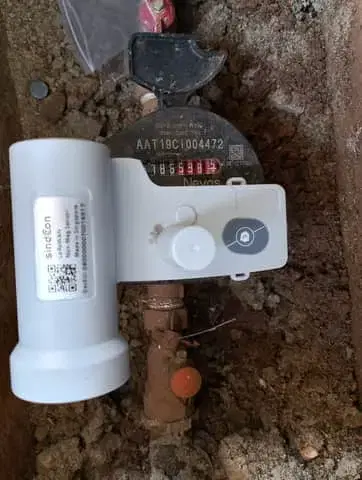

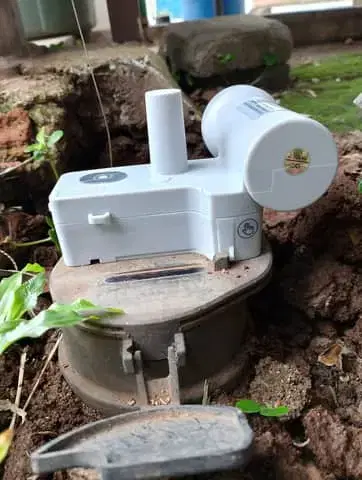

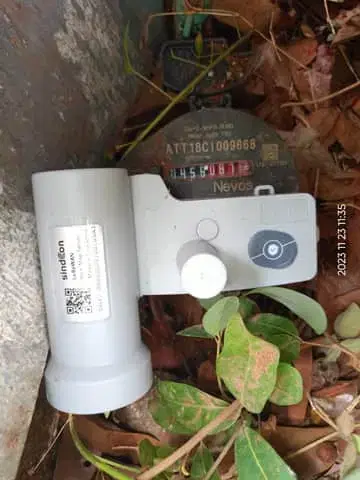

Implementations
